How it works

A Payment Link is a shareable URL that points to a Shift4-hosted checkout page. When a customer opens the link and completes payment, Shift4 creates a Checkout Session — the object that records everything that happened during that checkout attempt.

• Payment Link — configuration object: amount, product name, lifecycle controls, collection fields. Managed via the API at api.shift4.com.
• Hosted checkout — the payment page at pay.shift4.com/{id} that the customer sees. Rendered by Shift4; no code to embed or maintain.
• Checkout Session — created when a customer opens the hosted checkout page. Carries the staticFields and customFields (with the customer's answers, once entered) from the link, plus lastTransaction — the underlying sale response containing card brand, last four digits, captured amount, billing/shipping address (if collected), and success/failure status. One link can produce many sessions; each session corresponds to one checkout attempt (successful or not).
• Transaction — the financial record of the payment attempt. Exposed on the session as lastTransaction once the customer submits payment.

The link itself does not contain payment data — it is the configuration template. All per-attempt data lives on the Checkout Session.

A payment link moves through the following statuses:

Transitions:

• active → deactivated — manual action (POST /paymentlinks/update with paymentLink.status: "deactivated", or via the Customer Hub).
• active → expired — automatic when restrictions.dates.expiresAt is reached.
• active → completed — automatic when restrictions.payments.count reaches restrictions.payments.limit.
• deactivated → active — manual action (POST /paymentlinks/update with paymentLink.status: "active", or via the Customer Hub).
• scheduled → active — automatic at restrictions.dates.activatesAt.

expired and completed are terminal. Once a link reaches either state it cannot be reopened — create a new link.

A payment link's type selects what the link does:

• line_items (default) — a payment. The customer pays for the products defined in lineItems. This is the type behind every fixed-amount and customer-chosen amount link.
• card_verification — validates a card and saves it to the customer without charging it. See Card verification.

For line_items links, the amount shape of each line item then determines how much the customer pays — a fixed amount, or an amount the customer chooses. Fixed-amount links are available from both the Customer Hub and the API; customer-chosen amount and card-verification links are API only. In all cases, the amount field in each line item is expressed in major currency units — 10 equals $10.00.

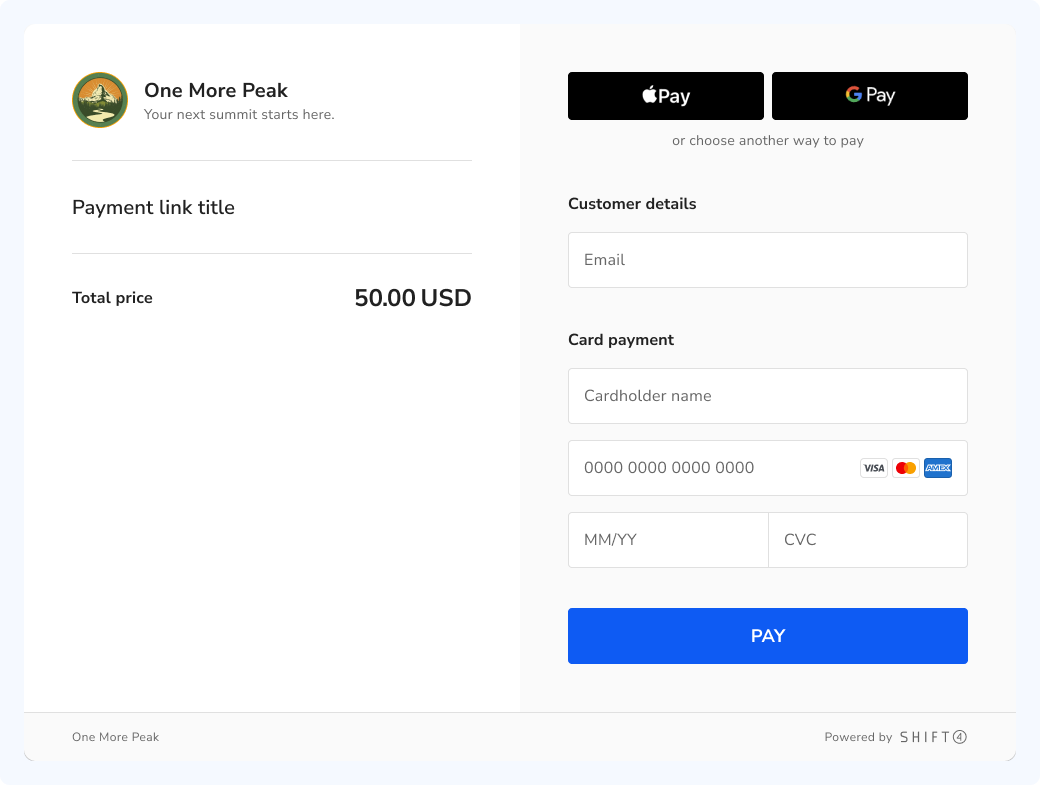

A fixed-amount link charges every customer the same preset amount. The merchant defines the amount and currency at creation, and the customer has no input over what they pay. This is the most common link type and covers the vast majority of use cases: invoices, service deposits, event tickets, and product sales.

{
  "currencyCode": "USD",
  "amount": {
    "total": 10
  }
}

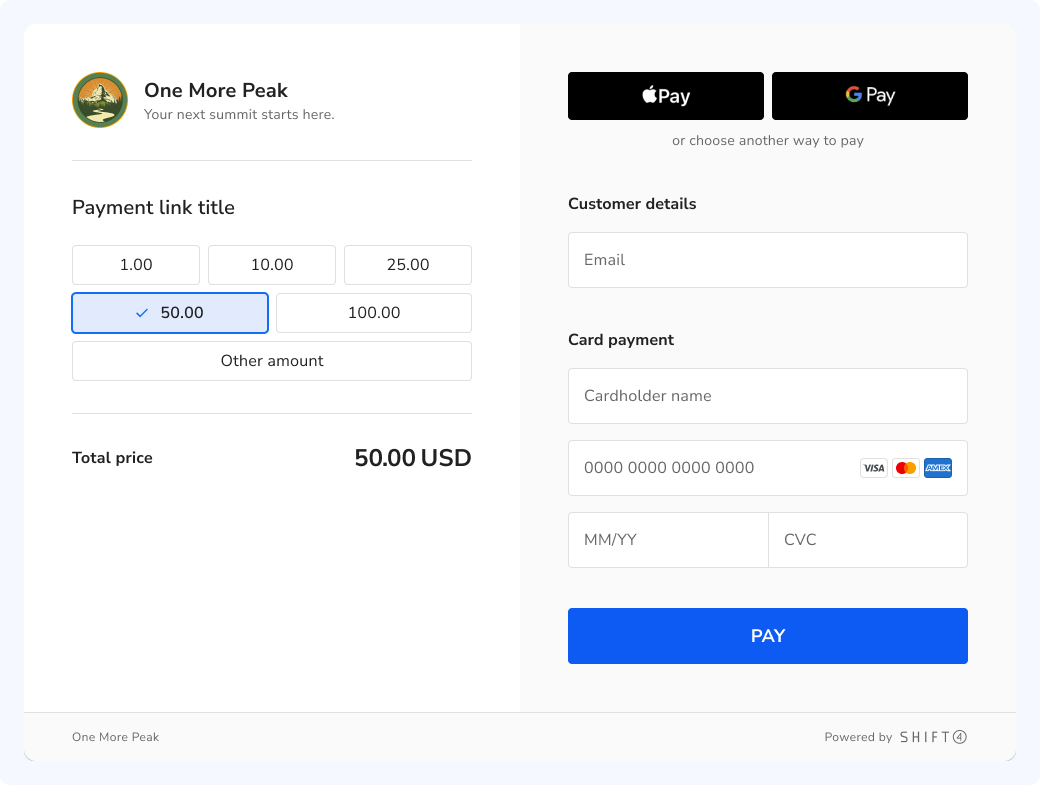

A preset-amounts link presents the customer with a fixed set of amounts to choose from. You define the options at creation; the customer selects one before proceeding to payment. This format works well when you want to guide the customer towards specific amounts — for example pay-what-you-want tiers, suggested tips, or a fundraiser offering $5, $10, and $25 options.

{
  "currencyCode": "USD",
  "amount": {
    "options": [5, 10, 25]
  }
}

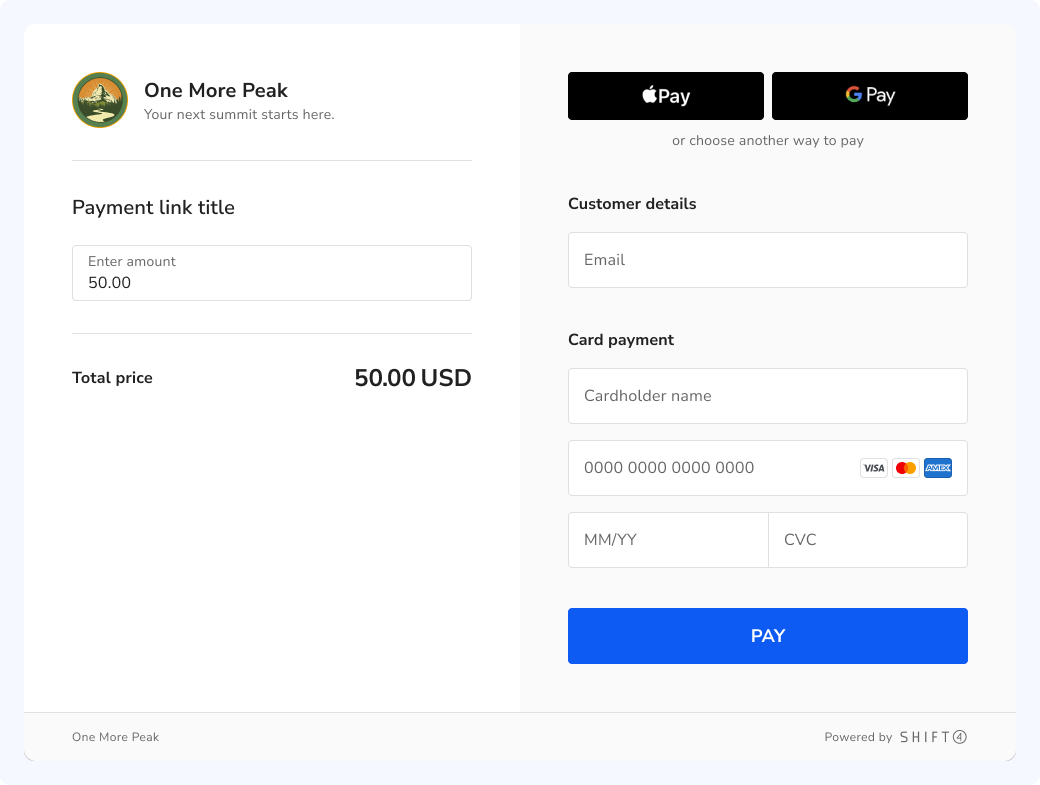

A custom-amount link lets the customer enter any amount between a configured minimum and maximum. This format suits cases where amounts of any size are welcome and constraining the customer to specific options would feel too prescriptive — pay-what-you-want checkouts, tips, or open fundraisers. A customer-chosen amount link must contain exactly one line item.

{
  "currencyCode": "USD",
  "amount": {
    "custom": {
      "min": 1,
      "max": 1000
    }
  }
}

The two customer-chosen modes aren't mutually exclusive. Provide options and custom together in the same amount object to show the preset amounts alongside an "other amount" field — the customer can pick a suggested amount or enter their own within the configured range. Only total (the fixed-amount shape) is mutually exclusive with the customer-chosen shapes.

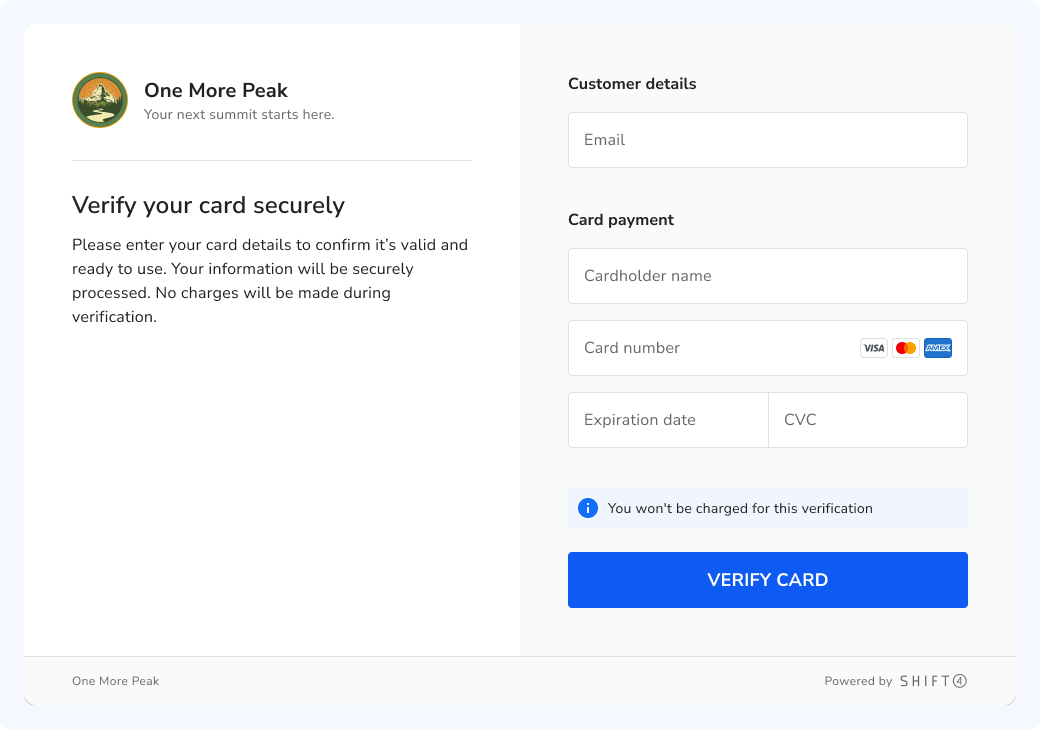

A card-verification link runs a $0 authorization to confirm a card is valid — and that there's a real person behind it — without charging anything. It's a security / legitimacy check: it succeeds only if the card is live and passes the issuer's checks. Set type to card_verification; the link takes no lineItems but requires a top-level currency and a customer (a new inline customer or an existing one by id).

The validated card is also saved to that customer, so the next time the same customer opens another payment link from the same merchant, the card appears as a one-tap option on the hosted checkout — a returning customer can pay without re-entering it. (Saving a card on its own doesn't require verification — a normal payment link can do that too; reach for card_verification when validating the card is the point and you don't want to charge.)

{
  "type": "card_verification",
  "currency": "USD"
}

activatesAt and expiresAt can be combined to define a precise active window — useful for time-limited promotions or scheduled fundraisers.

By default, the hosted checkout collects only the card details and email required for payment. Enable additional fields to collect more from the customer:

All collected data is stored on the Checkout Session object — not directly on the payment link. Every session captures customer email (and phone if provided) and payment details (card brand, last four digits, status); the optional fields from the table above are included when enabled.

Access the session through any of these:

• API — GET /checkoutsessions/retrieve with the session ID in the CheckoutSessionId header (taken from the returnUrl redirect's checkout_session_id query parameter or the checkoutSession.id field on the webhook payload).
• Webhook — the full session object is included in the checkout_session_completed event payload (API only).

Three mechanisms exist for attaching data to a payment link. They serve different purposes:

When a customer completes checkout, Shift4 sends a checkout_session_completed event to your registered webhook endpoint — this is the authoritative signal for a captured payment. For the full list of events, retry behaviour, and payload format, see Monitor and reconcile.
